Finedge refiner plates in Cast, Welded & Milled configurations with zero draft angle, 1.0-2.8mm bar widths, 17-4 PH metallurgy, and re-milling capability for 2-3 life cycles. Manufactured in Parason's integrated foundry, welding, and CNC facility for 75+ countries.

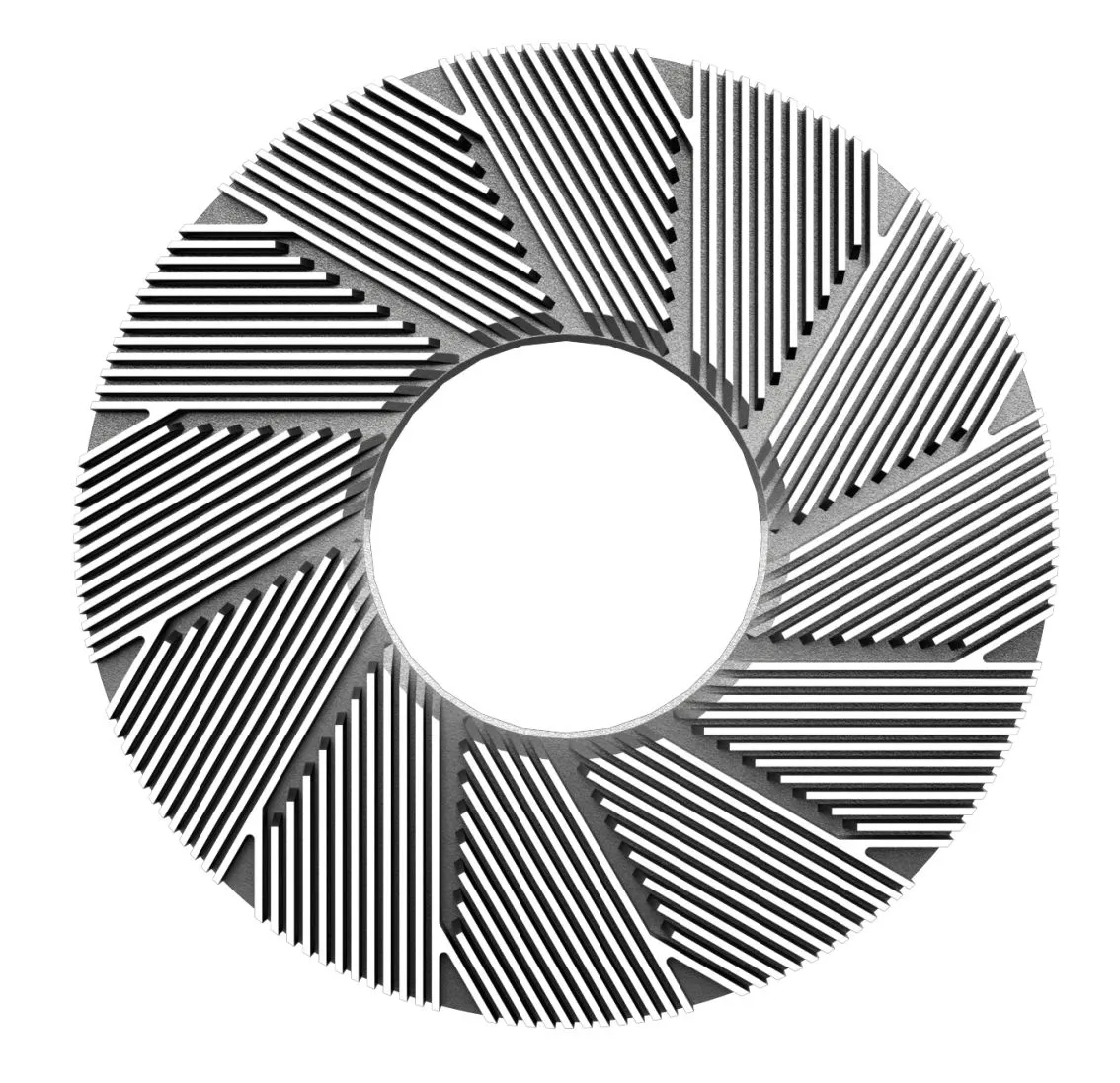

Parason Finedge Cast Refiner Plates are produced with advanced casting and CNC technology, ensuring high precision and uniformity across the refining zone.
Advanced Metallurgy: Manufactured in Parason's own foundry using superior alloy composition, these plates offer uniform hardness, high wear resistance, and durability under demanding conditions.
Optimum Life: Precision heat treatment and machining provide longer plate life, uniform wear, reduced maintenance, and consistent refining performance.
Fibre Treatment: Optimized bar and groove design ensures gentle fibre fibrillation, better fibre bonding, and improved paper quality with lower energy use.

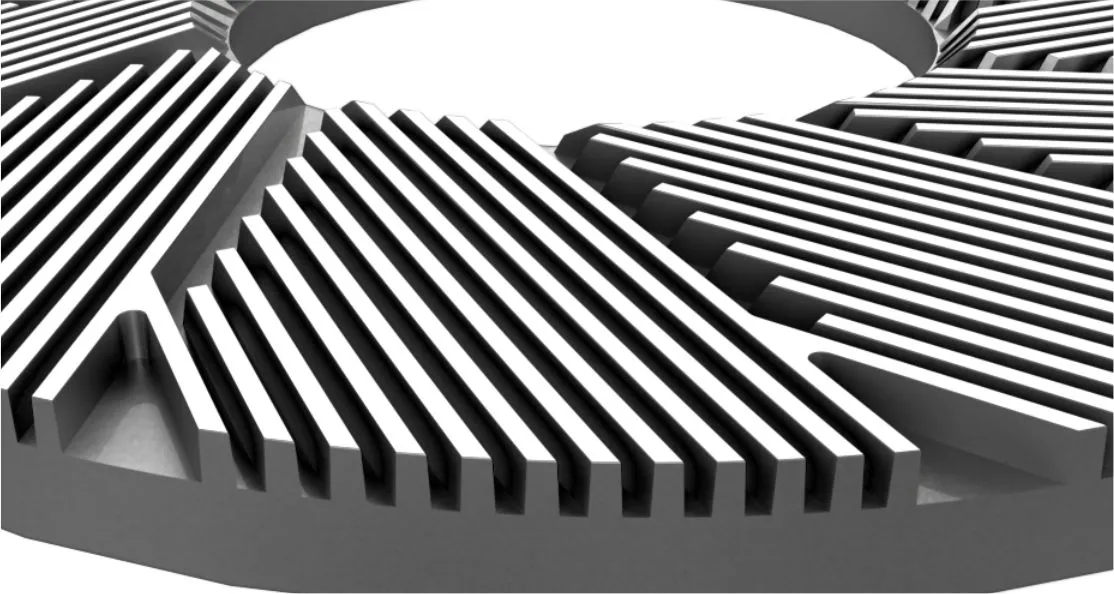

Half dam in the valley between sector
Half Dam Design

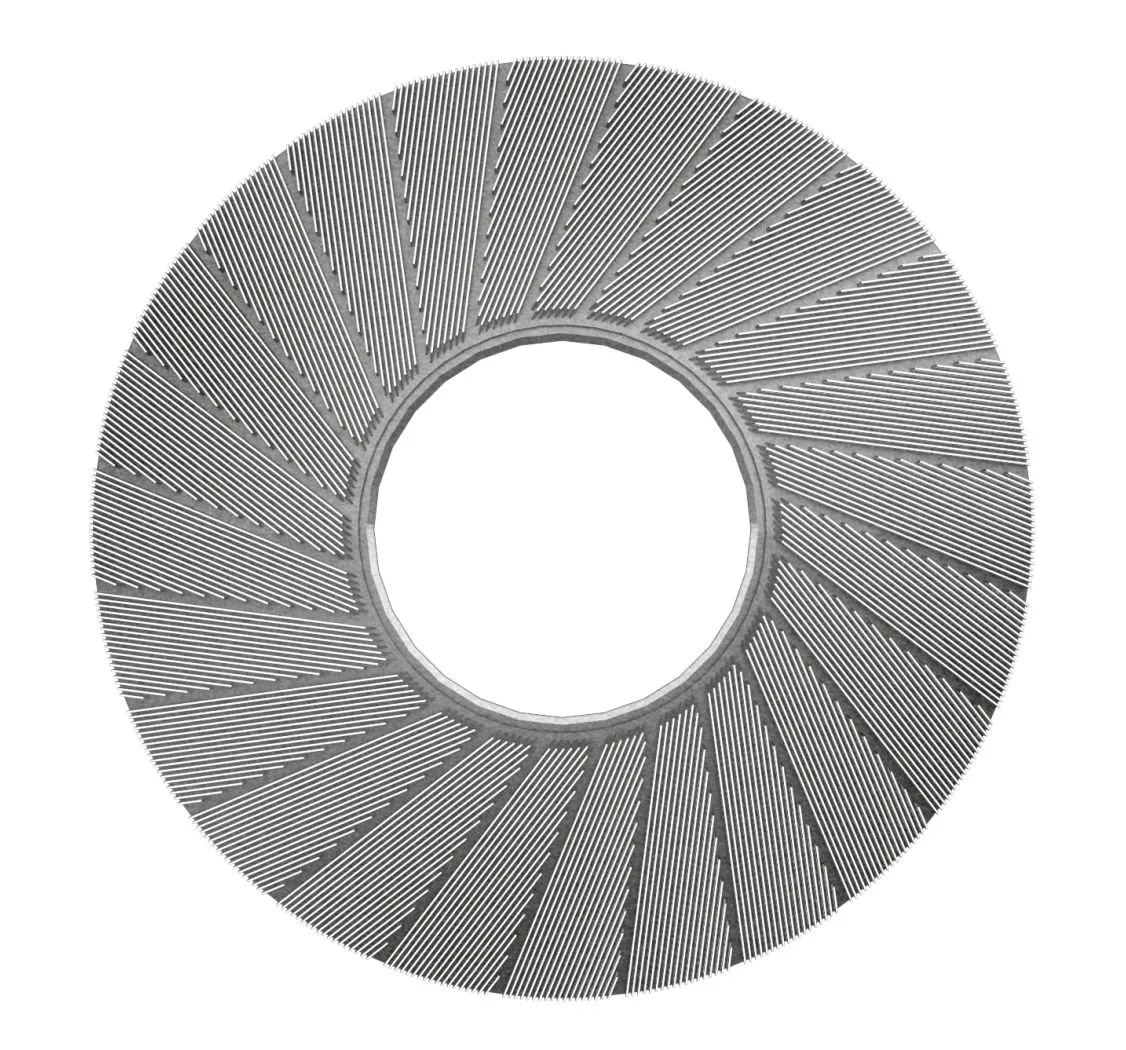

Parason Finedge Welded Bar Refiner Plates are manufactured using special CNC technology with Robotic Welding to provide the maximum uniformity in the refining zone.
Special Welding Metallurgy: Parason Finedge Welded Refiner Plates are cast in special metallurgy suitable for special welding technology with higher bar height and lower bar width.
Precision Manufacturing: Parason precision special Cast, Laser and Welding, manufacturing process minimizes groove width variations, which allows finer bar to optimize low intensity applications. Plate life is maximized due to higher bar height.

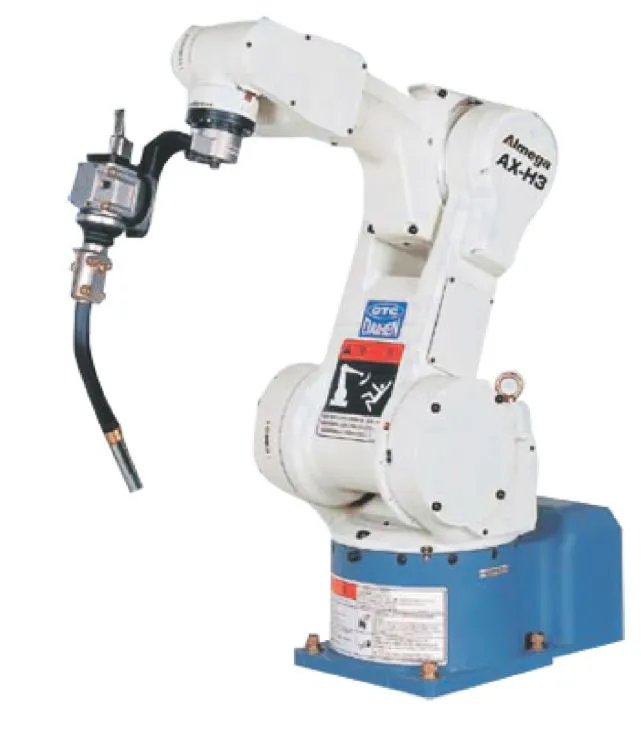

Utilizes the AX-C robot controller for fast communication and improved robot movement control
AX-C Robot Controller

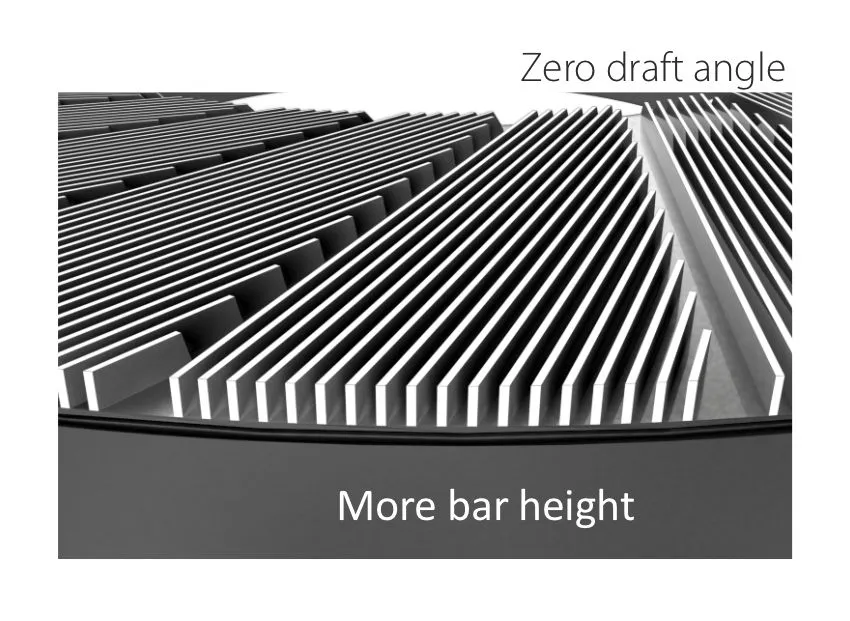

Zero Draft Angle — More Bar Height
Parason Finedge Milled Bar Refiner Plates are manufactured using CNC technology to provide the maximum uniformity in the refining zone.
Solid Piece Casting: Parason milled bars are cast in own foundry as a solid piece to provide uniform hardness throughout. The plates will wear uniformly over a time. The zero draft angle on the bars help in maintaining longer hydraulics.
Re-Milling Technology: The Parason precision CNC Milling manufacturing process provides accurate groove width, which allows finer bar to optimize low intensity applications. Plate life is maximized by re-milling which allows 2-3 life cycles.

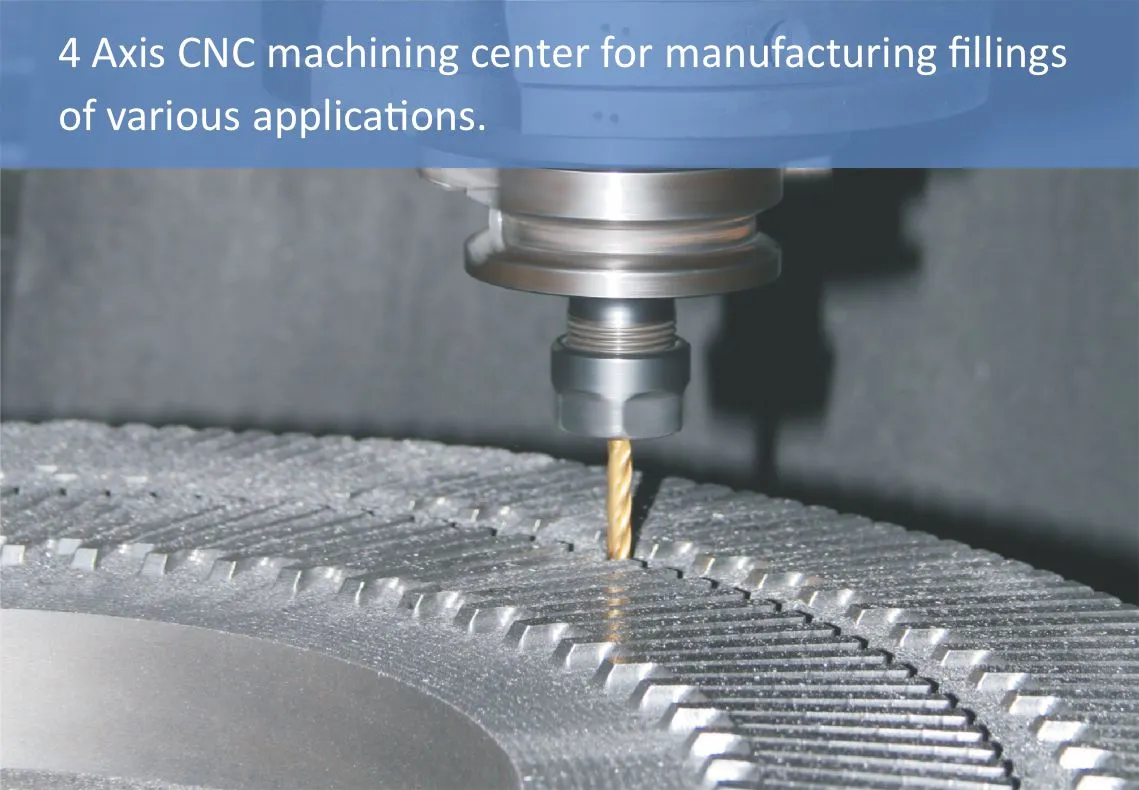

4 Axis CNC machining center for manufacturing fillings of various applications
4 Axis CNC Machining Center

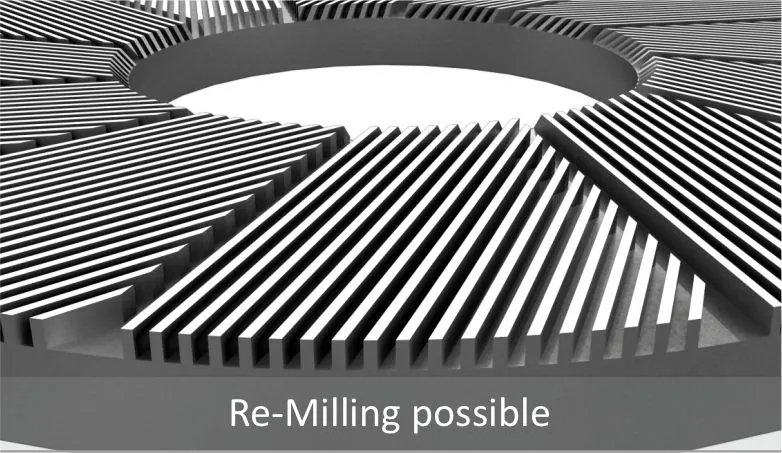

Re-Milling Possible
| Feature | Cast | Welded | Milled |
|---|---|---|---|
| Manufacturing | Advanced Casting + CNC | Robotic Welding + CNC | CNC Milling |
| Bar Width | Standard | 1.0 – 2.8 mm | 1.6 – 2.5 mm |
| Draft Angle | Half dam design | Zero | Zero |
| Re-Milling | — | — | Yes (2-3 cycles) |
| Metallurgy | Special alloy | Special welding alloy | 17-4 PH |
| Best For | Hardwood, Recycled | Hardwood, Recycled | Hardwood, TMP, Cotton, Recycled |
Selecting the right Finedge plate depends on your fibre type, refining intensity, and total cost of ownership. Use the decision guide below to match your application with the optimal plate technology. For mixed-furnish applications, also consider VRD plates with dual-zone refining capability.
| Criteria | Choose Cast | Choose Welded | Choose Milled |
|---|---|---|---|
| Primary Fibre | Hardwood, Recycled | Hardwood, Recycled | Hardwood, TMP, Cotton, Non-wood |
| Refining Intensity | Low to medium | Very low (finest bars) | Low to medium |
| Cost Priority | Standard lifecycle cost | Performance-focused | Lowest cost/tonne (re-milling) |
| Key Advantage | Half-dam for residence time | Narrowest bars (1.0mm) | 2-3 life cycles via re-milling |
Need help choosing? Our refining specialists can recommend the optimal Finedge configuration based on your specific furnish, throughput, and quality targets. Contact us for a free consultation.
Parason Finedge refiner plates are supplied to paper mills in 75+ countries across Asia, Europe, the Americas, Africa, and the Middle East. All three plate types — Cast, Welded, and Milled — are manufactured at Parason's integrated facility, ensuring consistent quality and shorter lead times.
Explore our full stock preparation equipment range, including disperser & deflaker discs and HC defibrator fillings.
Key specifications at a glance
Available in Cast, Welded, and Milled configurations. Milled plates support re-milling for 2-3 life cycles. Custom metallurgy and bar patterns available for specific applications.
Cast, Welded, or Milled — each Finedge plate is engineered for specific refining needs. Our team will recommend the optimal configuration for your fibre type, throughput, and quality targets.
