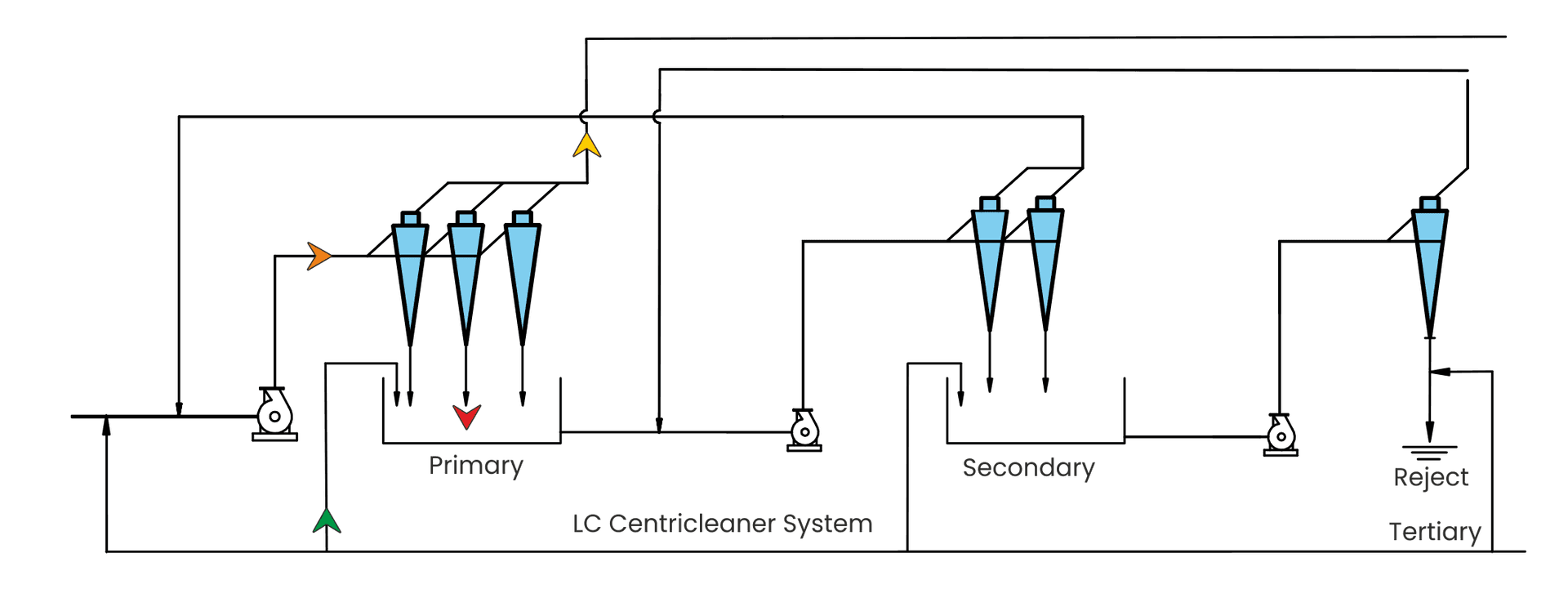

Pulp stock at 0.5 to 1.0% consistency feed through inlet pipe header to the cleaners and the stock enters the tangential inlet which accelerates the stock to downward centrifugal motion. Contaminants like dirt, shive, and specks with high specific gravity are forced to an outer wall of cone and downward through reject outlet orifice to reject header, the reject is again feeding to the 2nd stage of cleaners. The cleaned pulp stock rises upward and goes via accepting header to the upstream system, at the bottom of cleaners have dilution water headers with individual elutriation line provided to eliminate the fiber loses.
Application & Unique Feature
Efficient removal of contaminants like sand, glass, chips, pins, etc. from the pulp stock.
Efficient removal of impurities like dirt, shives, specks and light particles.
High wear resistance construction, Bottom ceramic cone.
Improved optical cleanliness of paper due to the removal of specks shives & dirt.
The small cone diameter resulting in outstanding cleaning efficiency. Proven design for approach flow location.
