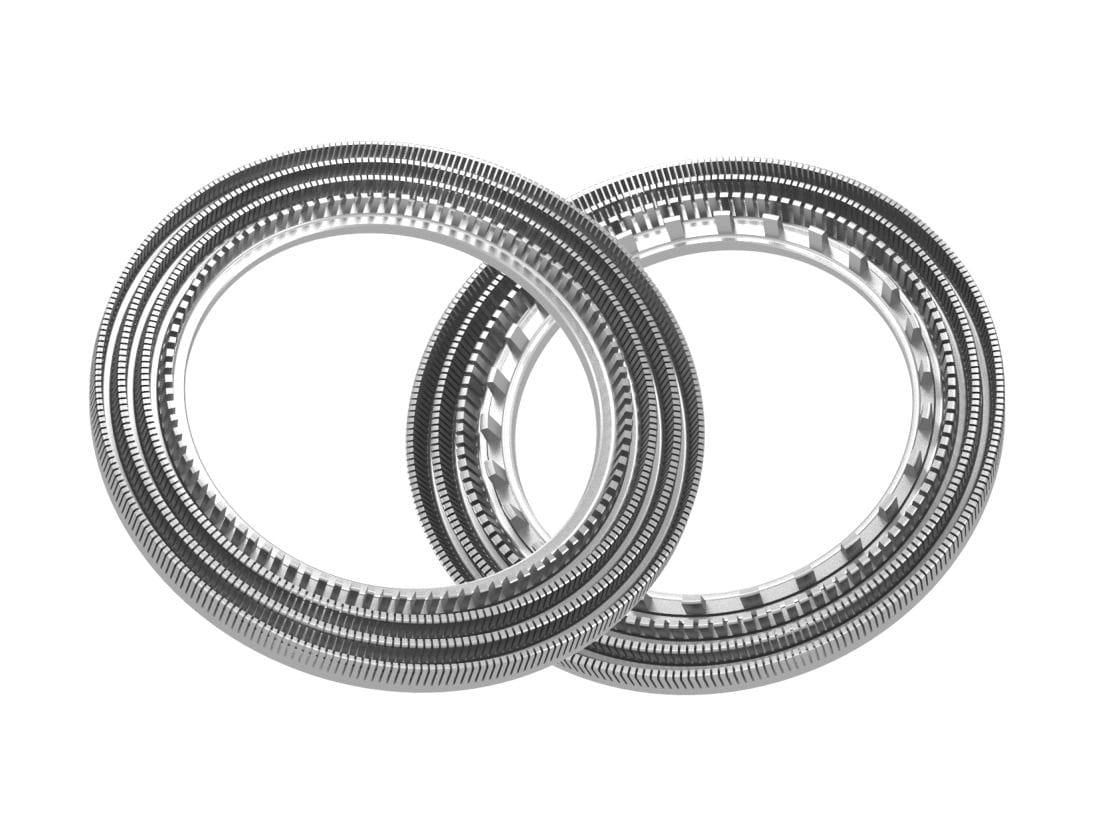

Ring type Deflaker
Working Principle
The pulp stock introduced centrally into the deflaker passes through the gap between the rotor and stator and teeth of each ring towards the outlet. Due to the unique Tri-disc system, the disc rotating at high speed creates strong turbulence and hydro-dynamic shock waves between the fiber bundles and flakes, while passing through the gap between teeth of rotor and stator, and releases the bonds between individual fiber under the impact of high-frequency waves and frictions.
Depending on the furnish and required differing efficiency, the outermost ring size is selected and the gap between rotor and stator is adjusted by shims.
Application & Salient Feature
- The fillings design is very precise with simplicity in manufacturing
- The fillings are manufactured with all over the machined surface which gives better deflaking effect on the fibre
- The gap between stator and rotor discs is constant. Hence, avoiding the clashing of stator and rotor discs in spite of the fluctuations in the flow and pressure of the pulp
Main Specifications:
| TDD-RING | MOTOR RPM=1500 | |
|---|---|---|
| MODEL | TPD | POWER (Kw) |
| 300 | 10-40 | 75-110 |
| 450 | 40-70 | 90-200 |
| 600 | 70-120 | 250-315 |
