Screenings

Combo Screen

Send us an enquiry
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Applications & Salient Features

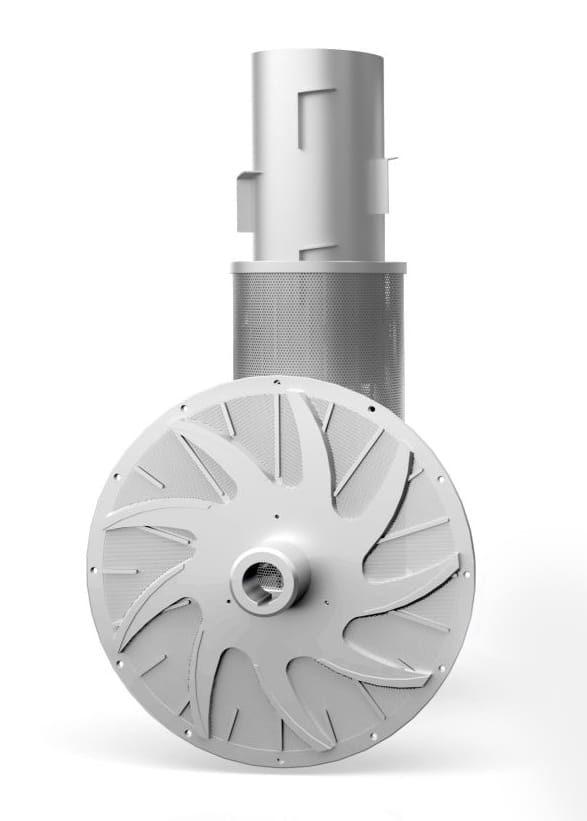

Combo Screen is a light-reject coarse screen that is capable of de-flaking the stock while simultaneously cleaning and dewatering impurities from the recovered fiber. Pulp enters tangentially from the inlet. The perforated plate and the impeller fitted at the bottom ensure both deflaking and cleaning of the stock. This passes accept to the remaining light reject, and fibre goes to the upper chamber where fine separation is done, all rejects (screening zone) are separated, and accepts are obtained.

Benefits

  • Fiber recovery from all rejects
  • Lower fiber loss in operation and power efficiency due to the compact design
  • Improvement in the percentage of yield and inlet chamber manufactured with high wear resistance alloy
  • Vision window for inspecting the inlet chamber
  • Well-engineered rotors, machined on CNC machines for greater accuracy
  • Dual operation saves pumping and no-load energy
Parason Combo Screen System Design
Fiber free rejection of Comboscreen
Fiber free reject of Parason Comboscreen

Successfully Commissioned in Suchi Paper Mill, Ghaziabad

Operational view of Combo Screen

Technical Specifications:

MODEL HRS kw/RPM Pulp mill capacity (TPD)
01 75/1440 100 – 150
02 90/1440 150 – 250
03 110/1440 250 – 500
