Low Consistency Screen

Download Catalogue

View Spec Sheet

Send us an enquiry

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

Applications & Unique Features

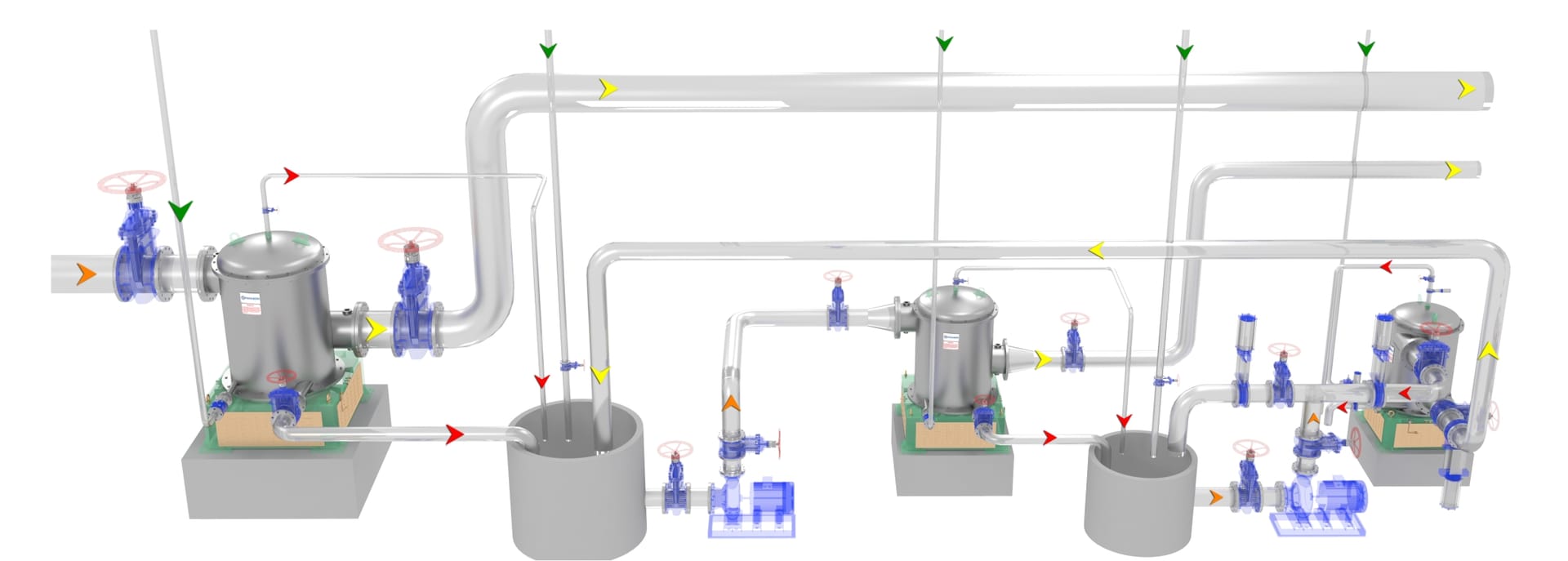

The screens are suitable for the stock preparation system and also for the approach flow system. The MULTIVANE AEROFOIL ROTOR design ensures the screen operates free from pulsation. The unique contoured multi-foil rotor with optimum foil angle ensures better screening efficiency and lesser reject thickening.

Advantages

No string formation
Low turbulence
Low power consumption
Improved screening efficiency
Improved quality of paper
Dependable paper machine operation

Technical Specifications:

LCS(VLS)			Motor RPM = 1470*
MODEL VSL	BASKET AREA Sq.m	CAPACITY (TPD)	POWER (Kw)
4	0.4	10-20	22*
5	0.8	20-30	30*
7	1.1	40-60	37*
66	1.4	40-80	45*
8	2.0	80-120	45*
9	2.5	100-160	55*
10	3.1	150-250	90*
11	3.8	180-270	110/980
12	4.5	200-300	125/980
14	5.7	250-400	132/980
