Reject Screen - Washing Cycle
Parason Reject Screen with PLC/ Timer controlled washing cycle used in the last stage of the screening system to minimize the fiber loss in reject discharge.
Application & Unique Features
- Exceptional improvement in screening
- Improvement in the optical properties of paper
- Excellent fiber saving/recovery
- Suitable for removing dimensionally unstable impurities
- Hole or Slot type basket
- No string formations
- Efficient separation of fiber and contaminants with almost zero fiber loss
- Programmable Logic Controller (PLC) panel
- Two separate panels for pneumatic and electric operation
Technical Specifications:
| VSMW/VSLW | MOTOR RPM=1470 | |
|---|---|---|
| MODEL | CAPACITY (TPD) | POWER (Kw) |
| 4 | 8-12 | 22/22 |
| 5 | 15-25 | 37/30 |
| 66 | 25-35 | 45 |
| 7 | 30-50 | 55/45 |

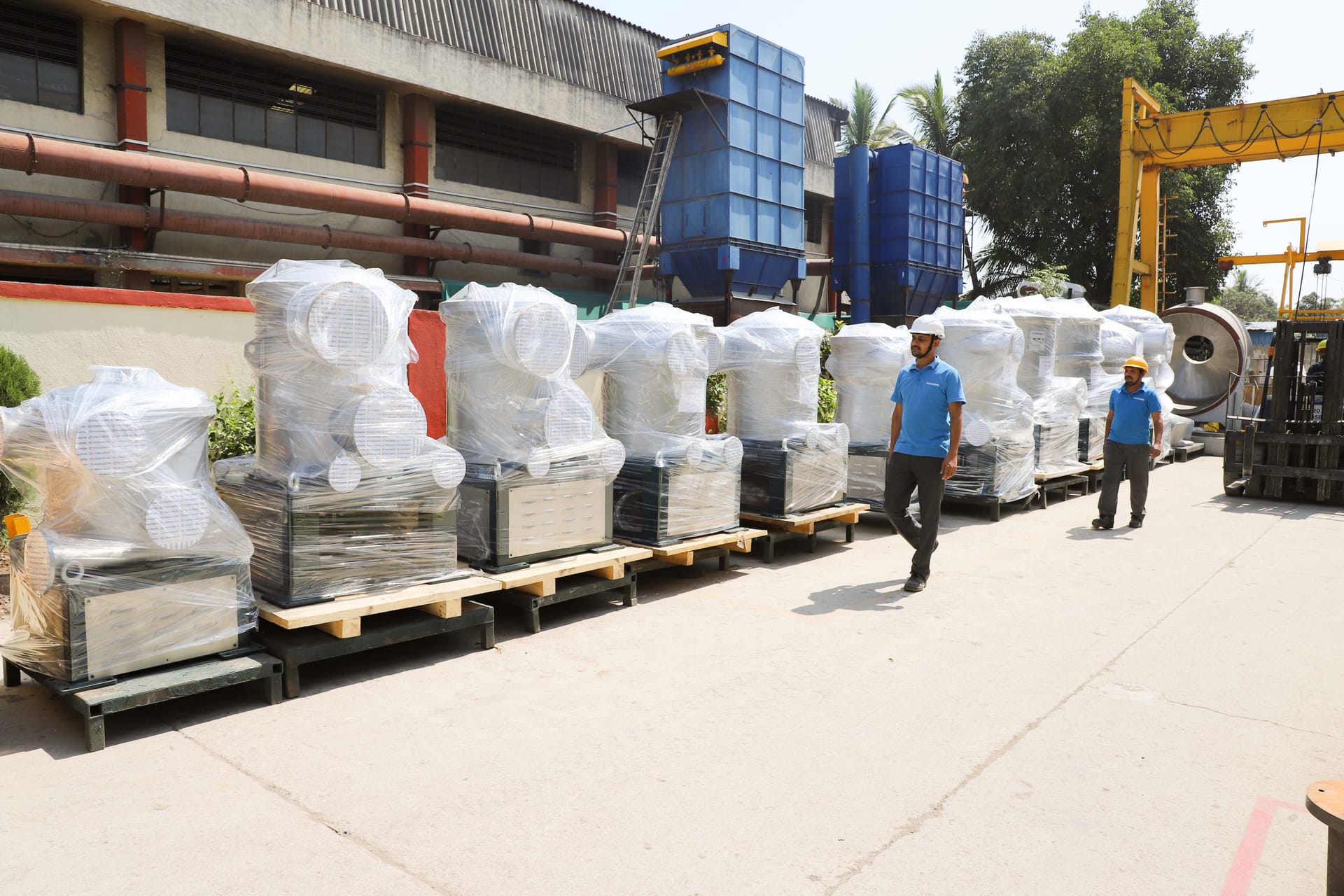

Photos:
