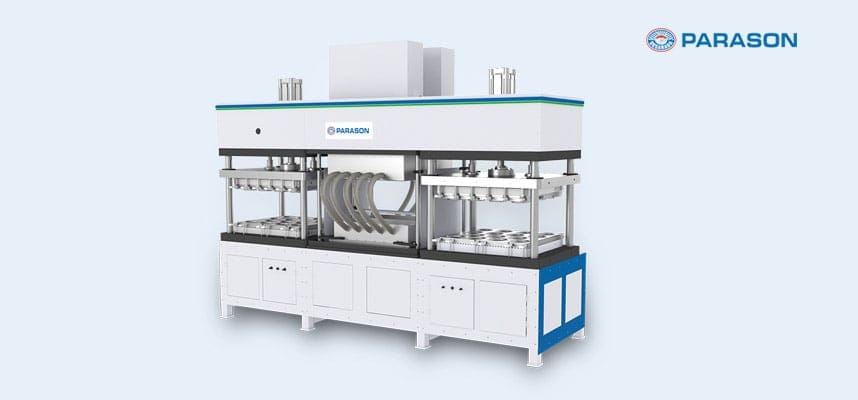

Semi Automatic Molded Fiber Production Line

Parason semi-automatic molded fiber production machine is a hybrid technological solution for the most popular machine type. Self-contained technology for forming and drying of products.

Forming machine is controlled by a PLC system and the effusion method of pulp inlet technology ensures accurate pouring of pulp into the mold that benefits in the uniform formation of products. Machine customization available for different platen sizes.

Advantages Of Parason Molded Fiber Production Line


  • Suitable for manual and robotic operation
  • In-mold drying of products
  • Machine body, pulp, and water contact parts are of SS304
  • Safety curtain for the safety of the operator
  • Four pillar guided molds with precise locking mechanism
  • Economical setup to start with lower capacity
  • Dual drive ensures stable platen movement at a higher speed

Main Specifications:

Capacity 500 kgs/day
Forming 1 station
Hot press 2 station
Platen size 1000*950 mm
Mold Special grade alloy
Dual heating mode Electric & Thermal oil
Electric heating load 90 kw
Thermal oil heating load 0.3 kw
Control system PLC with HMI
Drive Air liquid booster system
Forming type Effusion
Max Product Height 150 mm
