Refining Plates & Filling
Parason VGD SAS Disk & Tackles

VGD:-Veriable Groove Design

SAS:- Small Angle Sector

finedge milled refiner plate filling paper machine
refiner plate filling variable groove design
refiner tackles for paper machine
refiner tackle for pulp machine
Refining Audit Focus Would Be On
  • Existing Refining System Study and its audit in detail
  • Evaluate best suitable design and suitable alloy as per application
  • On site field service
  • User department  and maintenance personal training and awareness
  • Class room training focusing on technical, operational and maintenance troubling shooting and latest advances in refining technologies made available at ease
  • Organize meeting of experts on refining one to one to discuss and arrest problems with clear understanding and action plan
  • Conduct survey on health of refiners and suggest with some replacement part change over from time to time to increase the efficiency, durability.

Our Refining solutions will go a long way in improvement of mill’s competitiveness. Our solutions with commercial concept demonstration and customers support, confidence and participation helps in saving long term operational costs at a mill.

Technical Service Support

As believed and understood by every paper maker that refining is the heart for good paper making. PARASON’s  focus is always optimization of available refining resources.  We seek and collect process data and bar design implications resulting in implementation of long term improvements in the refining area .

Optimized Solution....Through Refining Audit

Reduce Refining Energy Consumption with Low Effort Solutions

Improving refining energy efficiency should be a priority in every mill. It’s a win from every angle. With energy efficiency comes lower energy consumption, lower operating cost, and increased operational flexibility.

Parason Refiner Filling Offers
refiner fillings discs for paper making machine
  • Design to suit pulp & paper industry needs (pulping / refining)
  • Available from 12” to 64” size and 25 HP to 8000 HP power loading.
  • Ensures right alloy (stainless steel alloys).
  • Excellently cast, machined and finished disc.
  • Power  saving  from  6 KW – 22KW / hrs.Enhanced plate life.
  • Uniform process results.
  • Precision CNC enabled disc profile with sophisticated software.
7

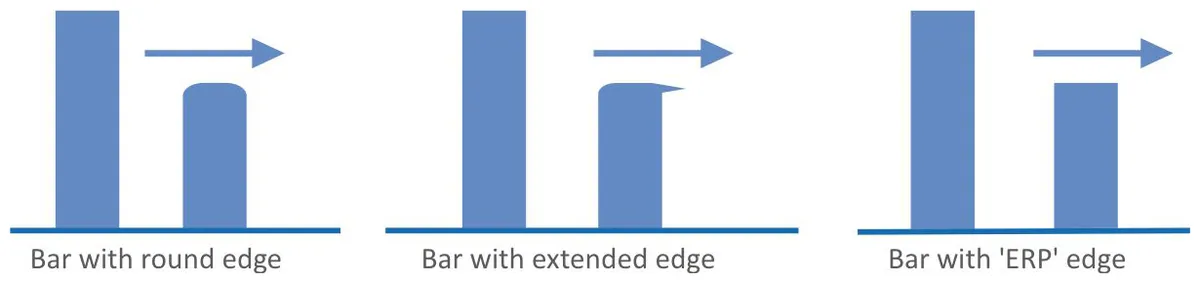

It makes a lot of sense that a refiner disc should  have uniform wear properties. Normally the variation in the wear of the refiner plates, may be wavy serrated or flat type.

The wavy & serrated wear cause maximum fiber damage and multiple disadvantages of high power consumption, increased cost per tonne, load variations etc. PARASON has innovated the concept of `ERP’ that is Edge Retention Property during strenuous refining conditions, ‘ERP’ plate has flat wear.

Casting is done by using the latest technology to provide the best condition for the alloys in temperature, time, melting technique to determine the best suitable alloy. A due consideration to properties of erosion, corrosion, wear resistance of refiner plates is taken care of.

refiner plate fillings segmental design

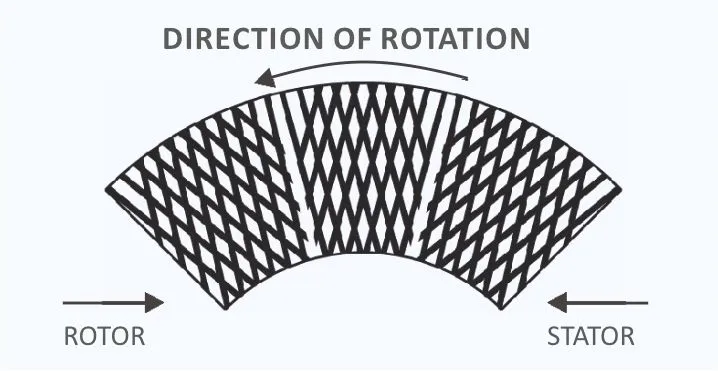

Scissor Action

Refining plates works on the principle of scissors. The multiple resolution and number of bar crossings creates millions of scissors edges. Refining takes place at the bar edges, hence it is essential to have right angle bar edge during refining.

8

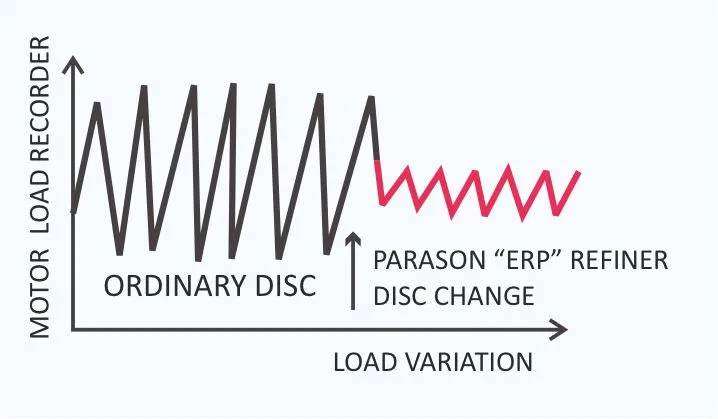

Improved Energy Efficiency

PARASON DISC with `ERP’ has shown improvement in the energy consumption  with  power  saving   from 6 KW / hr. to 22 KW / hr. in various applications grossly the power saved annually adds to profitability of the mills.

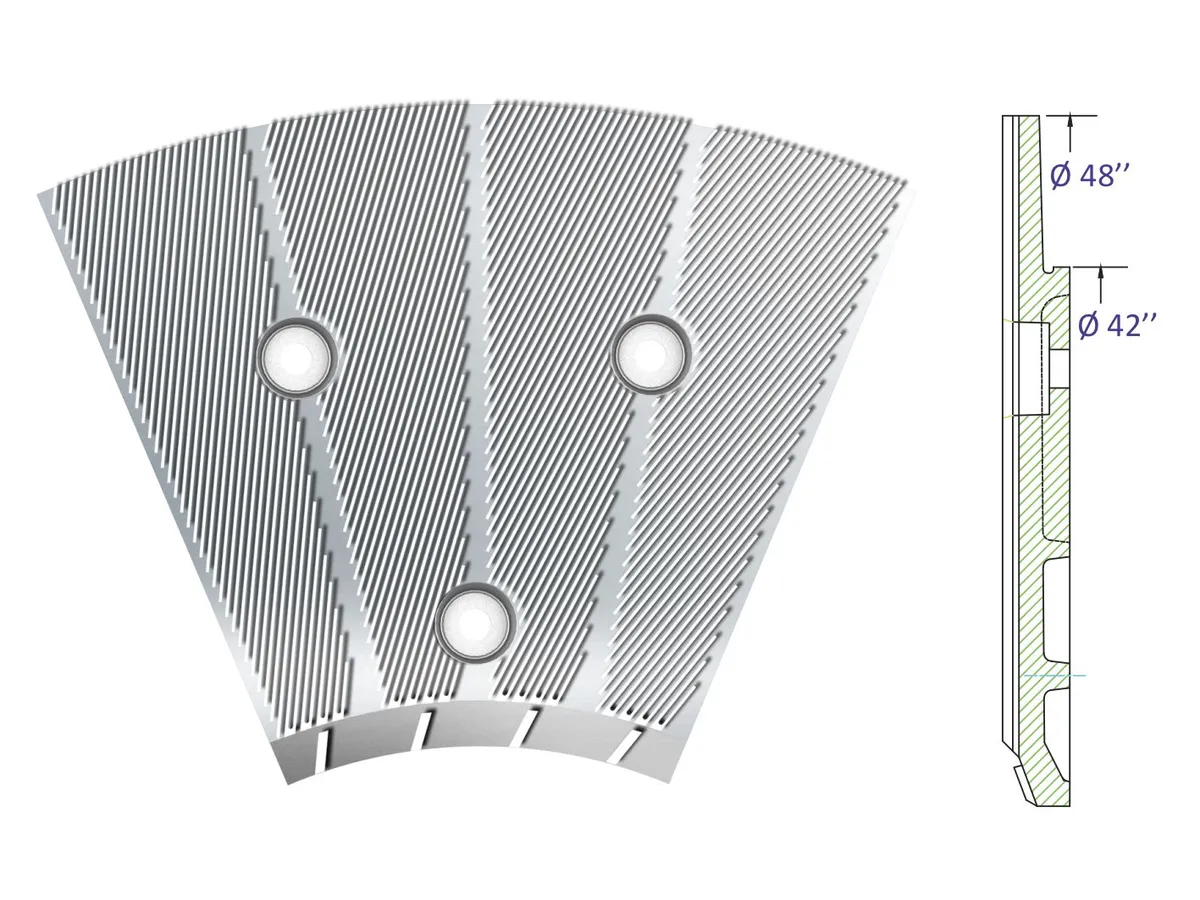

Parason Segmental Refiner Disc 34``, 40``, 42`` & 48``DDR
segmental refiner disc filling paper machine
disperser refiner disc for paper mills

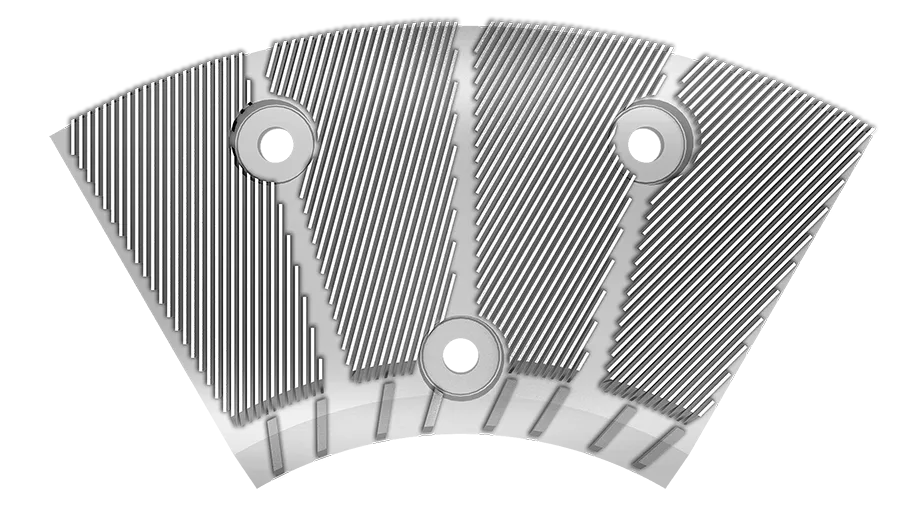

40″ DDR Disk

disperser refiner disc for paper machine

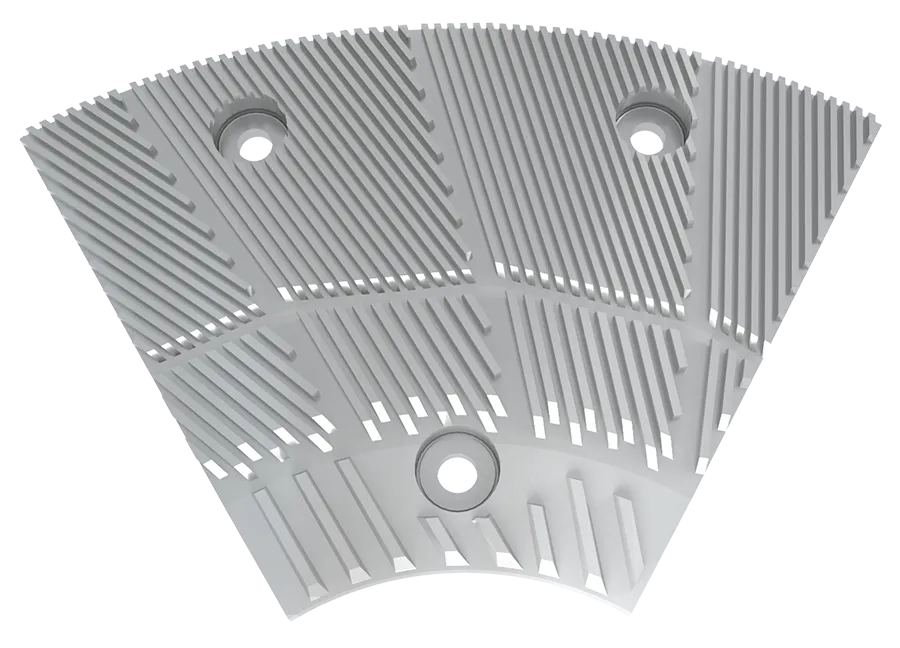

34″ DDR Disk

Overhung plate designs with higher outer diameter, increases the capacity of the refiner & cutting edges of plate.Resulting incresedplate life and improved pulp quality with enhanced capacity.

10

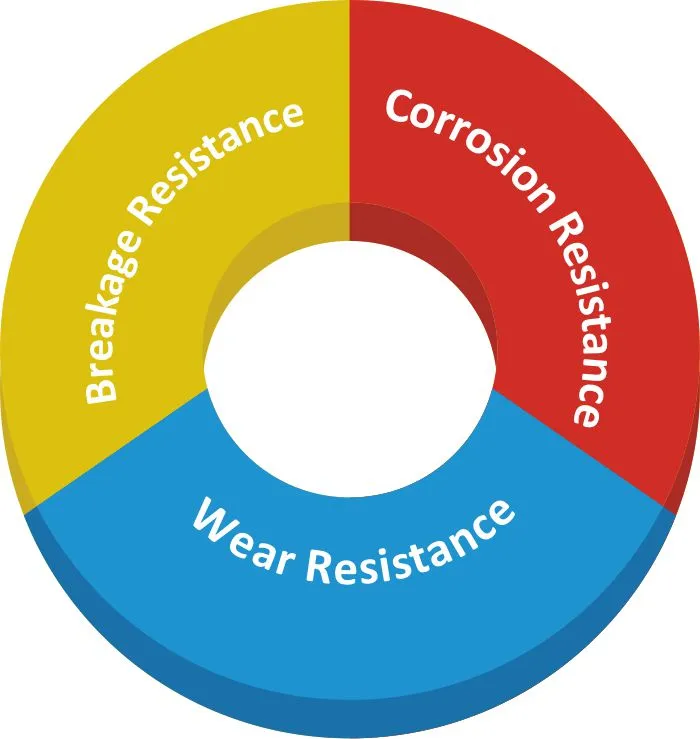

Metallurgy of Refiner disc

  • There are three basic metallurgical properties required in any Refiner Discs.
  • Corrosion resistance
  • Wear resistance
  • Breakage resistance
  • There must be correct balance of these three properties.
  • It is necessary to improve the toughness without scarifying the wear resistance which is a great challenge
  • Parason have developed wide range of metallurgy to suit refining various applications.

New proposed bar designs go through intensive R & D focused on field requirement like throughput, plate life & energy savings with commitment to customer satisfaction.

Welded Plate Manufacturing Methods

Parason refining solutions provide uniform and efficient fiber development with ultra low intensity refiner plates

refiner plates improving the quality

Conventional TIG welding process

Feature short fall

  • S. base is used
  • Welding in grooves
  • Less throughput
  • Visible joints
  • Less mechanical strength
  • Higher energy consumption
  • Less life
refiner plate diffusion bonding process

Diffusion bonding process

Feature short fall

  • Weaker mechanical strength
  • Visible welding from top and bottom
  • Fiber Hang-ups
  • Can damage refiner in case of accidents
  • Design limitations
ultra low intensity refiner plates

Parason laser technology

Feature

  • Strongest mechanical strength
  • Application based MOC
  • Zero draft Angle of the bar
  • Narrow bar width 0.8, 1.2, 1.6, 2.0,
  • 5, 2.8, 4, 5mm
  • Full SS-304 base, with or without dams
  • Invisible joints
  • Clean grooves, Smooth surface
  • Higher throughput
  • Uniform pressure
  • No fiber hang-up
  • Low Power consumption
Welded Plate Manufacturing Methods

Parason AWT for leading edge of ribs

16

Now Parason has developed AWT treatment for Leading Edge Retention Property to  Ribs for Welded Refiner Plates.

PARASON AWT (Anti Wear Treatment)

17

Microscopic View(AWT)

18

In this Leica Image analyzer all qualitative metallurgical parameters are converted into quantitative metallurgy

PARASON AWT (Anti Wear Treatment)

19

Field Result Internatinal Paper(APPM), India
Raw Material  :  Hard Wood Pulp (Dec-2014)

SN Condition Life % Increase
1 Welded 50 100
2 Welded+AWT 83 166
Parason A Step Ahead ... In Cast & Milled Fillings
45

Before CTT

46

After CTT

47

PARASON CTT (Complete Transformation Treatment)

The wear resistance is improved by the special treatment to transform all meta stable microscopic  phases into the stable microscopic phases.

the wear resistance of the disc is improved without  sacrificing  the breakage resistance This treatment is applicable for the Cast as well as  Milled refiner plates & tackles of special metallurgy.

Parason Variable Rib Design Plates (VRD)
tdr twin disc refiner filing plates paper machine

PARASON Variable Rib Design refiner plates are manufactured using Special Casting & CNC technology to provide the maximum uniformity in the refining zone.

PARASON Variable Rib Design refiner plates are manufactured with special cast technology to provide uniform hardness throughout. The plates wear uniformly.

    • Suitable for mixed furnish Refining.
    • Normally long fiber & short fiber need to refine separately with different bar patterns as per required SEL & CEL.
    • The VRD design is made to deal with mixed furnish
    • The peripheral velocity for long fiber zone is little lower than HW zone which is need for respective furnish.
    • The retention time for long fiber is higher than short fiber.
    • The rib height for long fibre zone is higher & smaller for short fiber zone to give desired  refining effect
    • This design ensures the minimum shortening or damage to the fiber which give better strength in the paper with higher breaking length.
    • There is base taper in the disc for better throughput & optimization of hydraulic capacity of disc.
    • SAS design offers close control over cutting angle of refiner disc.

Special Features:

  • Inlet Coarse Bar Pattern
  • Outlet Fine Bar Pattern
  • Base Taper
  • No Breaker bar
  • SAS Design
  • No Dam
  • Inclined Parting Line Between 2 Zones

Advantages:

  • High Fibrillation
  • Power Saving /T/oSR
  • High Throughput
  • No Collar Formation
  • Less Fiber Cuting
  • No Plate Clashing
variable RIB design refiner plate
Parason Finedge Welded Bar Refiner Plates
refiner plate segmental design paper machine
curved bar refiner plate design

CURVED BAR DESIGN

segmental refiner plate filling

SENTIMENTAL DESIGN

finedge welded bar refiner plate full circle

FULL CIRCLE DESIGN

PARASON Finedge Welded Bar refiner plates are manufactured using Special Casting & Robot Welding, CNC technology to provide the maximum uniformity in the refining zone. PARASON Finedge Welded Refiner Plates are Welded with Special Welding Technology. The plates will wear uniformly over time, and with the zero draft angle on the bar, with higher Bar height, with minimum bar width, hydraulic uniformity is maintained longer.

The PARASON precision Special Cast, Laser & Welding, manufacturing process minimizes groove width variations, which allows finer bar to optimize low intensity applications. Plates life is maximized due to high bar height able to maintain in this technology.

parason machinery india

Laser Machine Center

Parason Offers

Parason manufactures the Welded Refiner Plates, Tackles & Tri-Conics with adequate height of the rib to offer more disc life  & throughput.

refiner plate zero draft angle paper machine

More bar height

Users Requirement

  • Strength Development of fiber
  • Optimization of product Properties
  • Reduction in row material cost
  • Reduction in energy consumption

Special Metallurgy

SS-304 base
SS-301 ribs
SS-17-4 precipitated hardened ribs
Specialised AWT treatment

Benefits

  • Low Specific Edge Load (SEL)
  • Good fibrillation – consistent fiber treatment
  • Higher throughput
  • Suitable for Hardwood, Softwood & Recycled Fiber
  • Low Power Consumption

Special Features

  • Narrow bar width from 0.8, 1.2, 1.6, 2.0, 2.5, 2.8, 4, 5mm
  • High Cutting Edge Length (CEL)
  • Zero draft angle on the bar
  • More bar height – More life
  • Special metallurgy
Parason Finedge Milled - Refiner Plates

Application & Salient Feature

PARASON Finedge Milled Bar refiner plates are manufactured using CNC technology to provide the maximum uniformity in the refining zone.

PARASON milled blanks are cast in own foundry as a solid piece to provide uniform hardness throughout. The plates will wear uniformly over a time. The zero draft angle on the bars help in maintaining longer hydraulics.

The PARASON precision CNC Milling manufacturing process provides accurate groove width, which allows finer bar to optimize low intensity applications. Plate life is also maximized by re-miling which allows 2-3 life cycles.

refiner plate cutting on CNC machine paper

Special Features

Narrow bar width

  • Bar width range up-wards.. 1.6mm, 2.0mm, 2.25mm, 2.5mm
  • High Cutting Edge Length (CEL)
  • Zero draft angle on the bar
  • High life (Re-milling possible)
  • Special metallurgy (17-4 PH)

Benefits

  • Low Specific Edge Load (SEL)
  • Good fibrillation – consistent fiber treatment
  • 4Constant throughput
  • 4Suitable for Hard Wood, TMP, Non-wood fibers
  • (Cotton) & Recycle Fiber
  • Re-Milling possible
refiner plate reduce energy consumption paper machine
Parason Finedge Welded - Refiner Plates

Application & Salient Feature

PARASON Finedge Welded Bar refiner plates are manufactured using Special CNC technology with Robotic Welding, to provide the maximum uniformity in the refining zone. PARASON Finedge Welded Refiner Plates are cast in special metallurgy suitable for special welding technology with higher bar height  low bar width.

The PARASON precision Special Cast, Laser & welding, manufacturing process minimizes groove width variations, which allows finer bar to optimize low intensity applications. Plate life is optimized due to higher bar height.

parason group

Special Features

  • Narrow bar width range 1.2mm, 1.6mm, 2.0mm, 2.5mm, 2.8mm
  • High Cutting Edge Length (CEL)
  • Zero draft angle on the bar
  • More bar height – More life
  • Special metallurgy

Benefits

  • Low Specific Edge Load (SEL)
  • Good fibrillation – consistent fiber treatment
  • Constant throughput
  • Suitable for Hard Wood & Recycled Fiber
refiner plate draft angle paper machine
Parason Finedge Inlet Curved Bar - Refiner Plates

Application & Salient Feature

PARASON Finedge Inlet Curved Bar refiner plates are manufactured using Special Casting & CNC technology to provide the maximum uniformity in the refining zone.

PARASON Finedge Curved Bar refiner plates are special cast in own foundry to provide uniform hardness throughout. The plates will wear uniformly over a time and having a longer bar length. The flow of pulp follows the grooves between the bars results in longer residence time. The result of Finedge Curved bars helps in more gentle refining action which continuous over a longer time. Curving the refiner bars at INLET enables them to function better as a pump. The half dams between sectors, further improve the pulp residence time resulting into improved refining.

The PARASON precision Special Casting & CNC manufacturing process provides accurate groove width, which allows finer bar to optimize low intensity applications.

Special Features

  • Longer pulp residence timeHigh Cutting Edge Length (CEL)
  • Finedge Curved bars function better as a Pump.
  • Suitable for Hard Wood & Recycled Fiber
  • Special metallurgy

Benefits

  • Finedge Curved bars-more gentle refining action.
  • Low Specific Edge Load (SEL).
  • Good fibrillation – consistent fiber treatment
  • More throughput
  • Suitable for Hard Wood & Recycled Fiber
inlet curved bar refiner plate paper machine
Parason Conical Refiner Fillings
conical refiner fillings for paper machinery
shallow angle cone flow refiner fillings
conical refiner fillings for paper industry
conical refiner fillings for paper machine

Shallow Angle Cone-Flow Fillings (JC-0 Series)

PARASON conical refiner fillings offer exceptional high performance level of Fibre processing

PARASON manufactures conical refiner fillings of various designs, sizes to suit the industry needs.  PARASON conical fillings offer flexibility of various designs to optimise the process. Made from high strength, tough and corrosion resistant Stainless Steel Alloy.

Uniform wear ensuring longer life.Precision engineering to ensure consistent quality and superior performance. PARASONS innovation of ERPTM that is edge retention property makes the application unique and offers energy saver design.

PARASON Offers cast CONICAL filling for all models of JC-0 refiners. Large number of patterns with thick to thin bars suitable for different refining applications.

TYPE RIB WIDTH GROOVE WIDTH P-PARASON
Microbar 1.2 1.9 MB-Extra Low Intensity Refining
Welded 1.6 1.6 SW-Low Intensity Refining
PSF 2.0 3.0 Short Fiber Fine
PSM 2.5 3.5 SM-Short Fiber Medium
PSC 3.0 4.0 SC-Short Fiber Coarse
PLF 4.0 5.0 SF-Short Fiber Fine
PLM 4.5 6.0 SM- Short Fiber Medium
PLC 5.5 7.0 SC-Short Fiber Coarse
PFS 4.0 3.0 FS-Fiberillating Short
PFL 8.0 5.0 FL-Fiberillating Long
PTM 3.0 7.0 TM-Trimming Medium
PTC 4.5 8.5 TC-Trimming Coarse
PMX 4.5 3.6 MX-MIxed Fiber

The fillings are with PARASONS innovation ERPTM property which ensures efficient refining life with lower energy consumption. PARASON can fulfill the demand of the industry irrespective of size and model with customs design

Angle Monoblock Fillings
low angle monoblock refiner fillings
monoblock refiner fillings for paper machinery
monoblock refiner fillings for paper mill

PARASON cast and duly machined fillings are available for all models of conical refiners suitable for Jordan 1R,2R,3R, Jones, Fibre master etc.

These single piece cast fillings  with precision grinding of sharp edges ensures maximum wear to optimize life and performance. Fillings are built with special treatment for long lasting services

Low Angle Monoblock Fillings
claflin refiner fillings for paper mill
cotton fiber fillings for paper machine

COTTON FIBER FILLINGS

PARASON manufactures Claflin fillings for every model like 101, 202, 303, F9 refiners. The fillings are cast stainless steel offering superior performance in the development of fiber, long life of the fillings ensuring better economy.

Metallurgical quality control is precisely maintained at every step from raw material, heat treating to final testing desired hardness and wear resistance that

Benefits

  • Uniform fiber treatment
  • Long periods of economical refinings
  • Units of maximum structural strength for desired stock treatment
  • Fast, dependable deliveries
  • High grade steels – heat treated with edge retention property ‘ERP’
Parason Tricone Fillings
tricone refiner fillings for paper machine
conical disperser fillings for paper machine

Shallow Angle Cone-Flow Fillings (JC-0 Series)

PARASON  cast and fabricated and duly machined fillings are available for almost all model of RTC 1000, RTC 2000, RTC 3000, RTC 4000 suitable for different grades of paper application. We supply fillings both in cast as well as fabricated type.

Various standard patterns for HW and SW  refining, for Broke refining and for refining of Mechanical pulps, and various specific fiber types. Fine Edge refiner plates suitable to the application for improved capacities in both short fiber and long fiber refining.

Parason Tricone Fillings

PARASON DISPERSER DISC WITH QST (Quartz Surface Treatment)

disperser refiner plate fillings
disperser discs segmental design paper machine

Parason manufactures the disperser discs in various designs and metallurgy.

Disperser discs often face typical initial setting troubles like :-

  • Excessive Vibration
  • Higher Noise level
  • Load hunting
  • Disturbed performance
Parason HC Defibrator Fillings

PARASON makes refiner plates to suit the fiberboard industry such as

  • Medium  Density  Fiberboard  (MDF)
  • Particle board,  Hard Board
  • Insulation board,  Siding.
  • PARASON technological expertise pattern making of Dams, sub surface dam, root taper, bar design thickness by CNC machines ensures optimum performance. These filling are cast in Alloy stainess steel and heat treated , ground finished, dynamically balanced and made  ready for as per required application

PARASON ensure optimum result by

  • Selection of proper design.
  • Selection of right alloy.
  • Excellent casting & heat treatment
  • Ground finished and dynamically  balanced

Technical experts apply various criteria apply selection such

  • Impact strength .
  • Wearing resistance
  • Corrosion resistance.
  • Cavitations resistance.
  • Abrasion resistance
maize grinding disc refiner plate paper machine

Maize Grinding Disc

Parason also serving allied industries like Starch, Gum industries

Parason manufactures the Maize Grinding discs in various designs and metallurgy. Complete range of Maize Grinding disc from 26″ – 52″.

Download
single refiner filling disc paper machine

Refiner Plates & Fillings

Download Button2

Enquiry

[bunch_contact_form contact_form=”JTVCY29udGFjdC1mb3JtLTclMjBpZCUzRCUyMjUyMDIlMjIlMjB0aXRsZSUzRCUyMmNvbnRhY3QlMjB1cyUyMHNpZGViYXIlMjIlNUQ=”]
Related Links
